Product Details

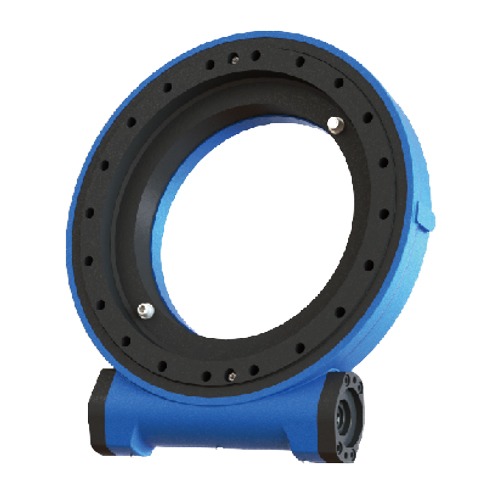

SEA-9 Slew Drive



The SEA series slew drive device cleverly integrates components such as the vertical axis, electric drive, transmission system, control system and safety device through reasonable structural design, providing an efficient, controllable and safe solution for rotation in the vertical direction. plan.

The SEA series fully enclosed slew drive usually refers to a rotating mechanism that is completely enclosed in the external environment. The key components within the mechanism are protected and are not susceptible to external factors such as dust, moisture, corrosion, etc. This design is common in a variety of industrial and mechanical applications, including construction, mining, agriculture, port equipment, and more.

Product Enquiry

Specification

Slew drive systems in agricultural machinery are often used to provide the ability to rotate equipment or tools in a horizontal direction. Such a design can increase the flexibility of agricultural machinery, making it easier to adapt to different working environments and tasks. Here are some common features of agricultural machinery’s swing drives:

  • 360-degree rotation capability: Allows equipment to rotate completely horizontally, providing a wider working range and reducing the frequency of needing to move the entire mechanical equipment.
  • Precise positioning: Rotary drive systems are typically designed to position equipment precisely, allowing operators to easily place tools or equipment where they are needed.
  • Increased efficiency: With agricultural machinery having a slewing drive, operators can adjust their working position more quickly, thereby increasing work efficiency.
ModelOutput TorqueTilting Moment TorqueHolding TorqueGear RatioTracking PrecisionWeightDrawing
SEA96.5 KN.m33.9 KN.m34.5 KN.m61:1≤0.17°48kg
SEA94794 lbf.ft25×10³ lbf.ft25.5×10³ lbf.ft61:1≤0.17°48kg
PEA96.5 KN.m33.9 KN.m34.5 KN.m61:1≤0.09°48kg
PEA94794 lbf.ft25×10³ lbf.ft25.5×10³ lbf.ft61:1≤0.09°48kg
